Inventor

Autodesk Inventor is a CAD modeling and design software, which allows complex 3D part and product design. Here are a few examples of  models which were created using this software.

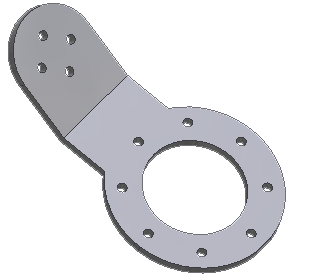

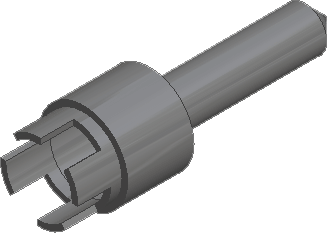

Clutch Plate             Knob Shaft              Lock Part

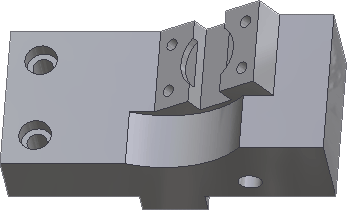

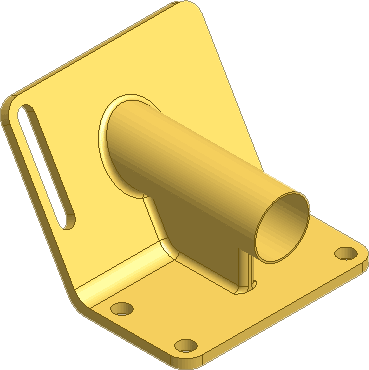

    Machinist Jig          Pipe Mount
